MAMX 1001
Formerly ETMX 1001
Formerly CAPX 101
Description:
This car is owned by Mammoet.
This car was formerly CAPX 1001, the reporting marks were changed in April of 2002. The car was originally owned by
TransAlta Utilities Corp., Calgary, Canada.
Specifications:
Capacity |
792,000 lbs. |
Light Weight |
391,500 lbs. |
Load Limit |
792,000 lbs. |
Number of axles (33" wheels) |
18 |
Load Platform Length |
35' |
Load Platform Height |
3' 8" |
Car Length |
146' 2" |
Maximum Vertical Load Shifting ability |
12" |
Maximum Horizontal Load Shifting ability (either side of car center line) |
14" |
Photos:

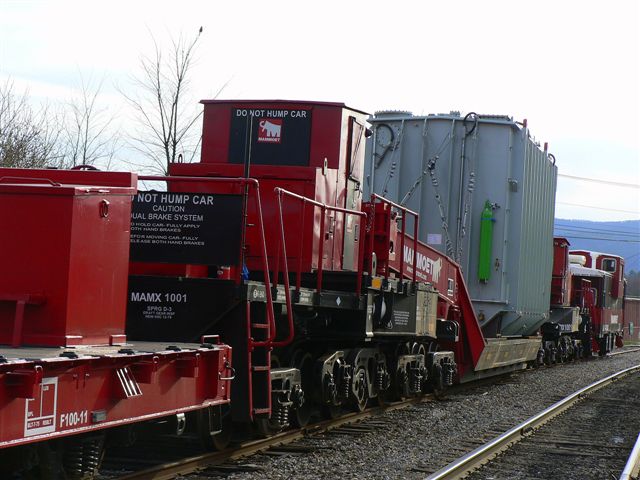

The following photos were sent by Ernie Hiatt.

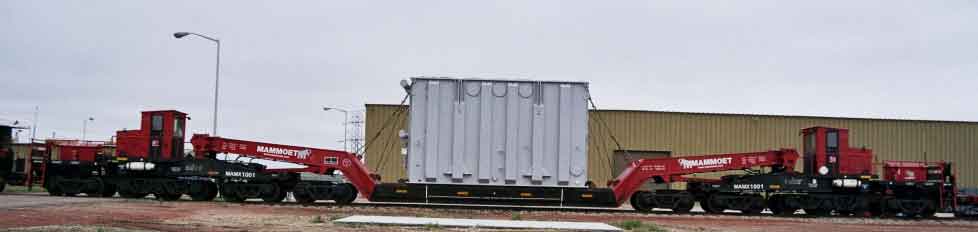

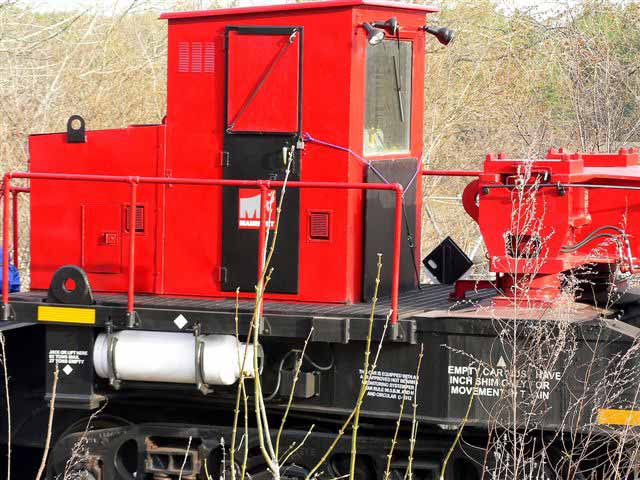

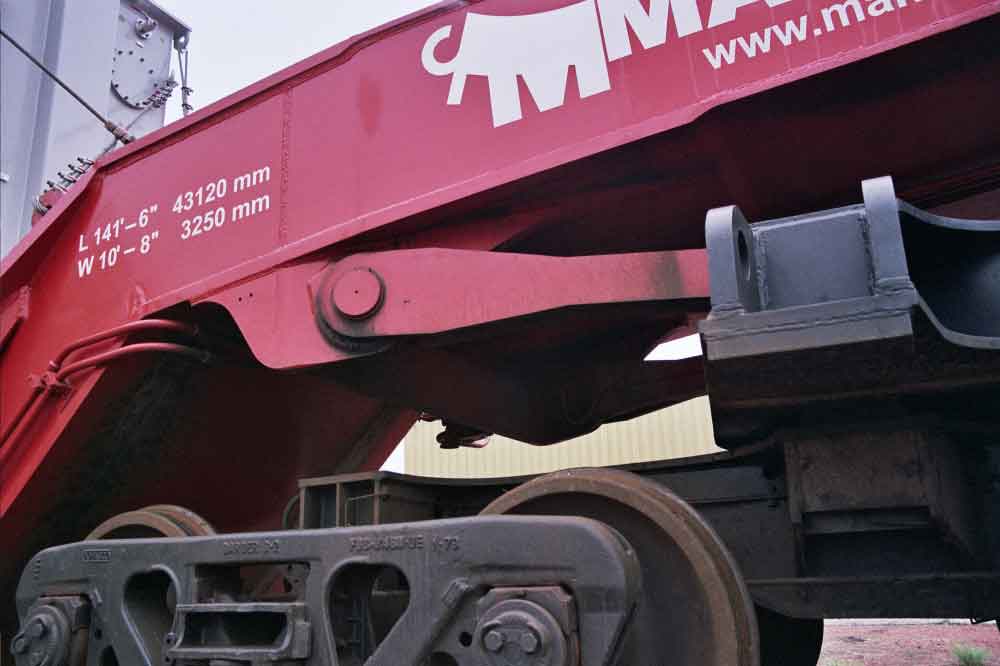

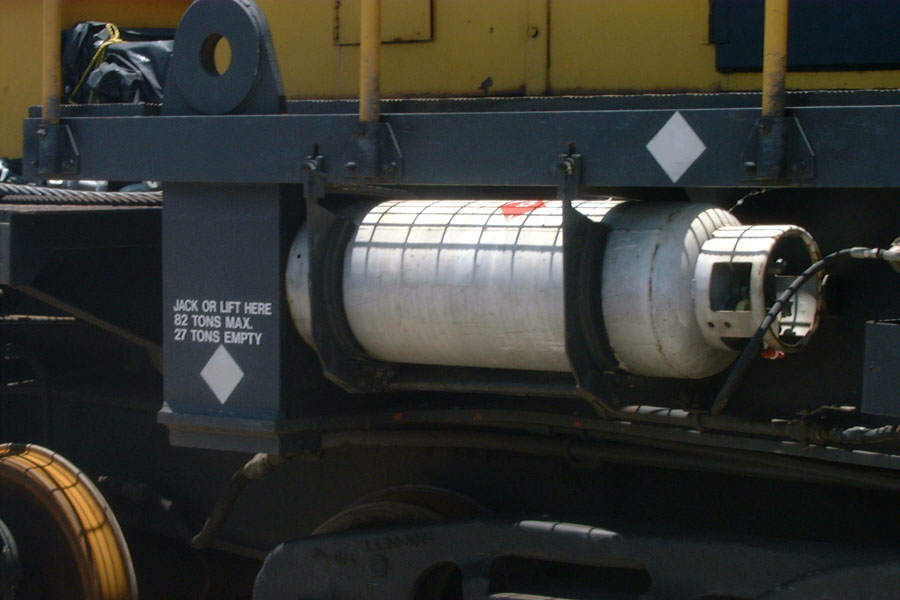

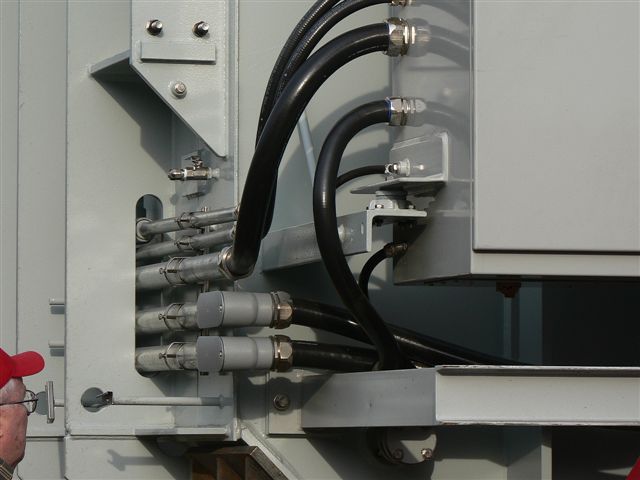

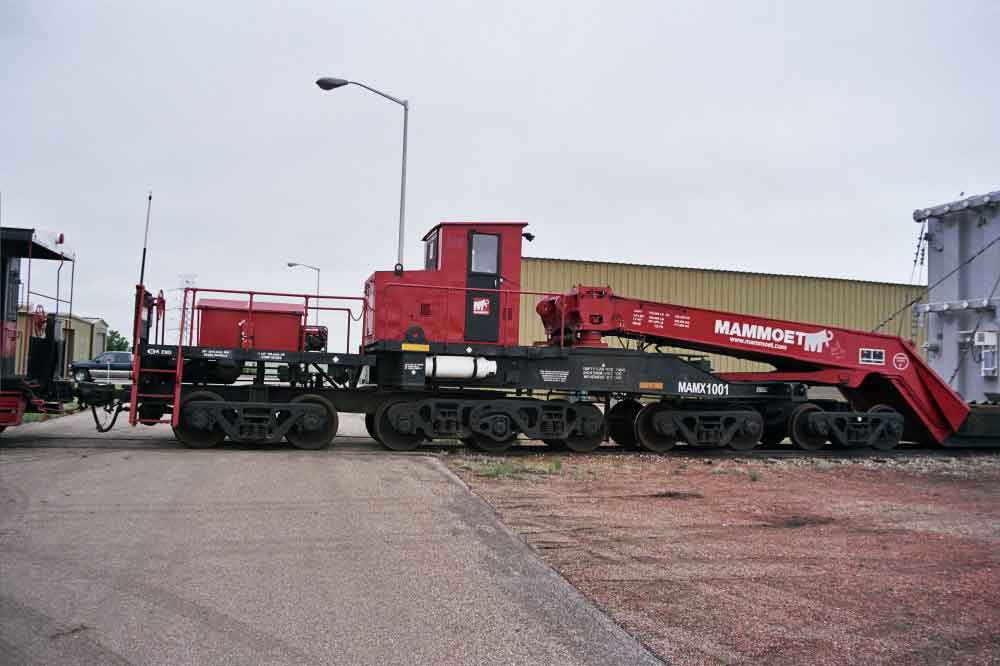

The following photos were taken by Ed Duke of Hensler, ND. There are some great detail shots here.

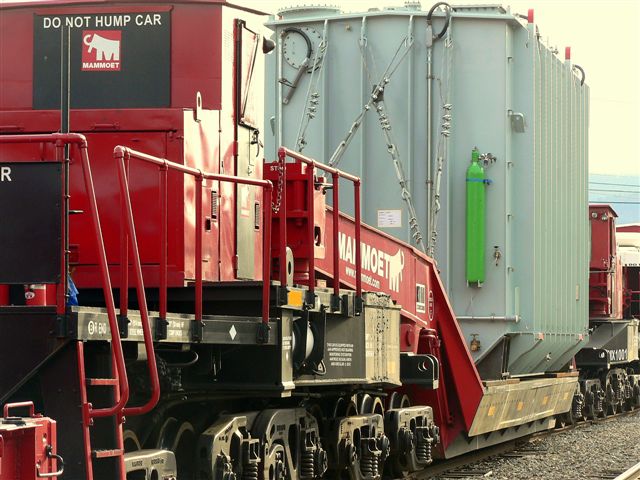

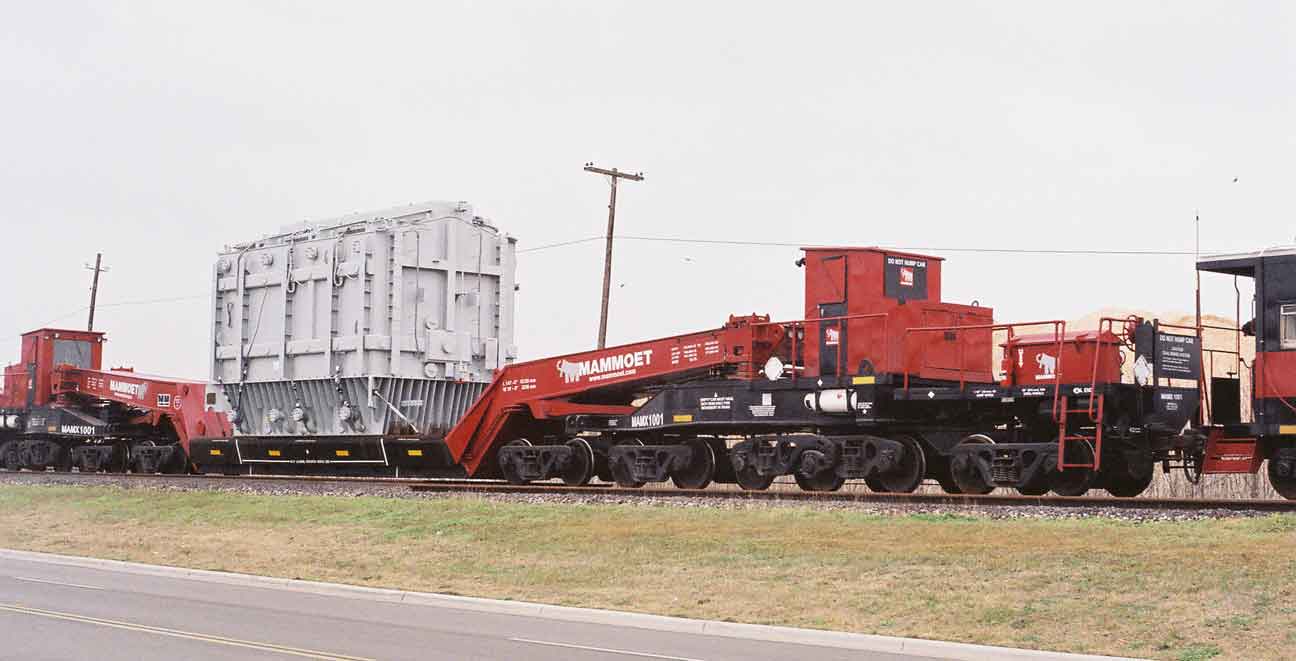

The following photos were taken at Bush Junction, Finfeather Road, Bryan, Texas, in Feb. 2007, and are used here
with the photographers permission.

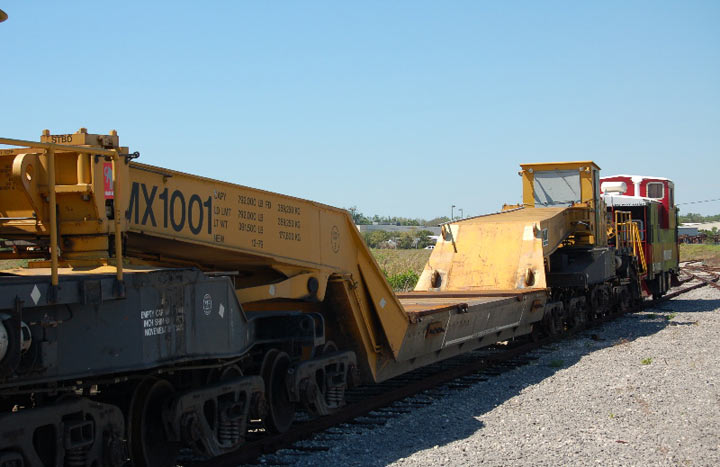

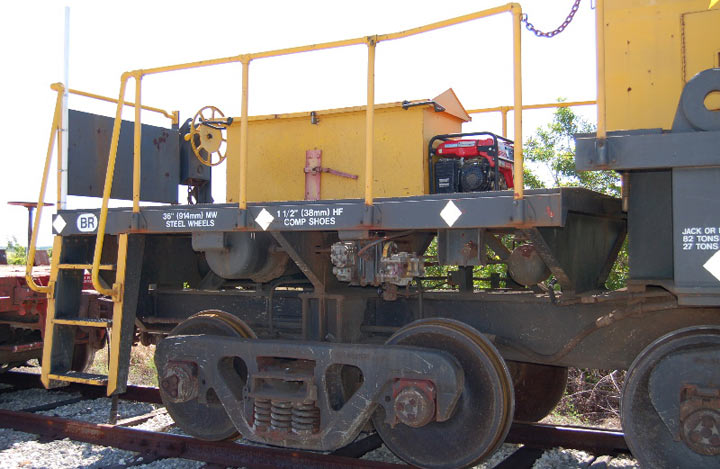

The following photos were taken by George Case in April 2006 in Ellenton, Florida, northeast of Tampa. They were taken at a GE facility where transformers are repaired.

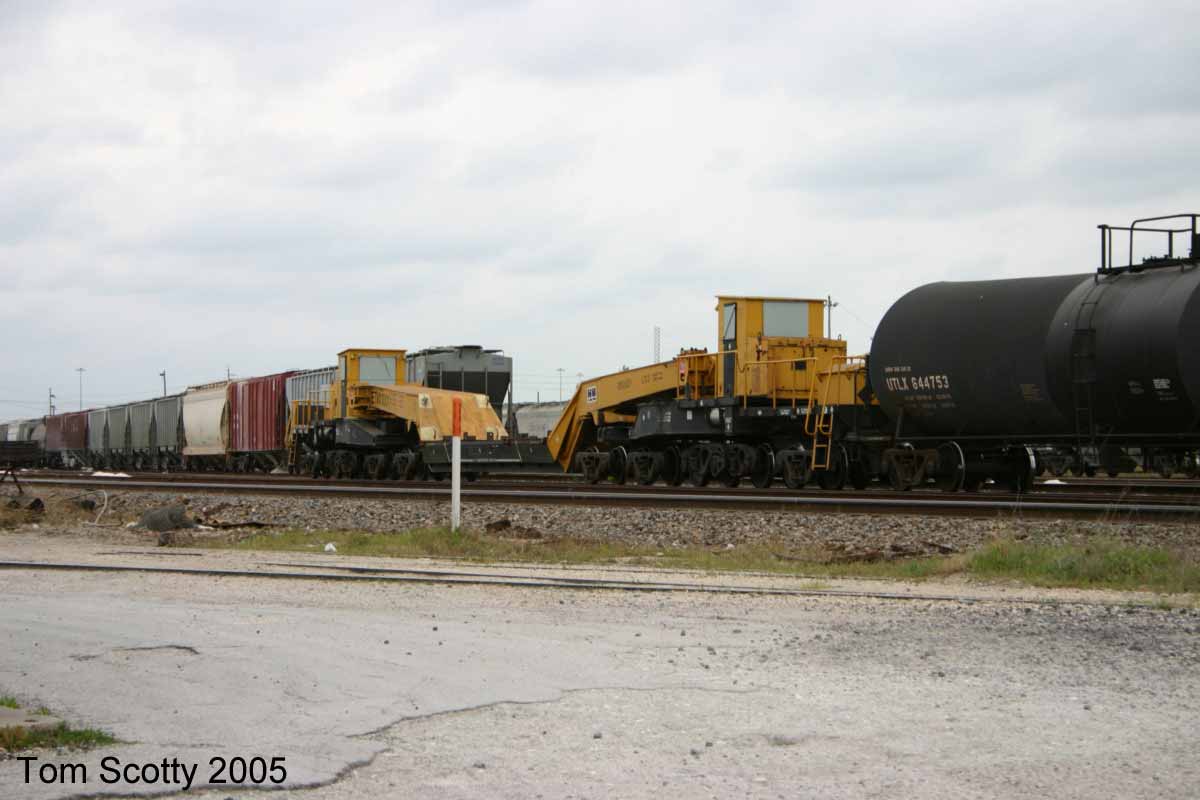

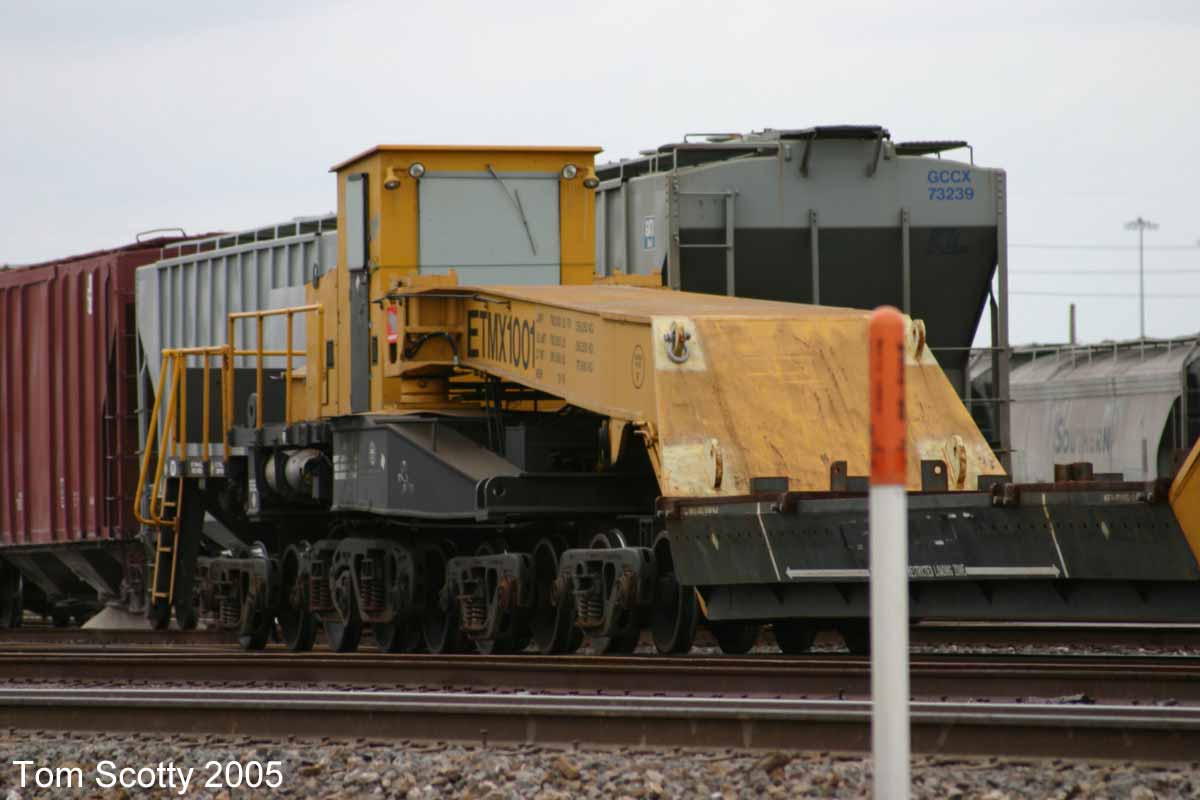

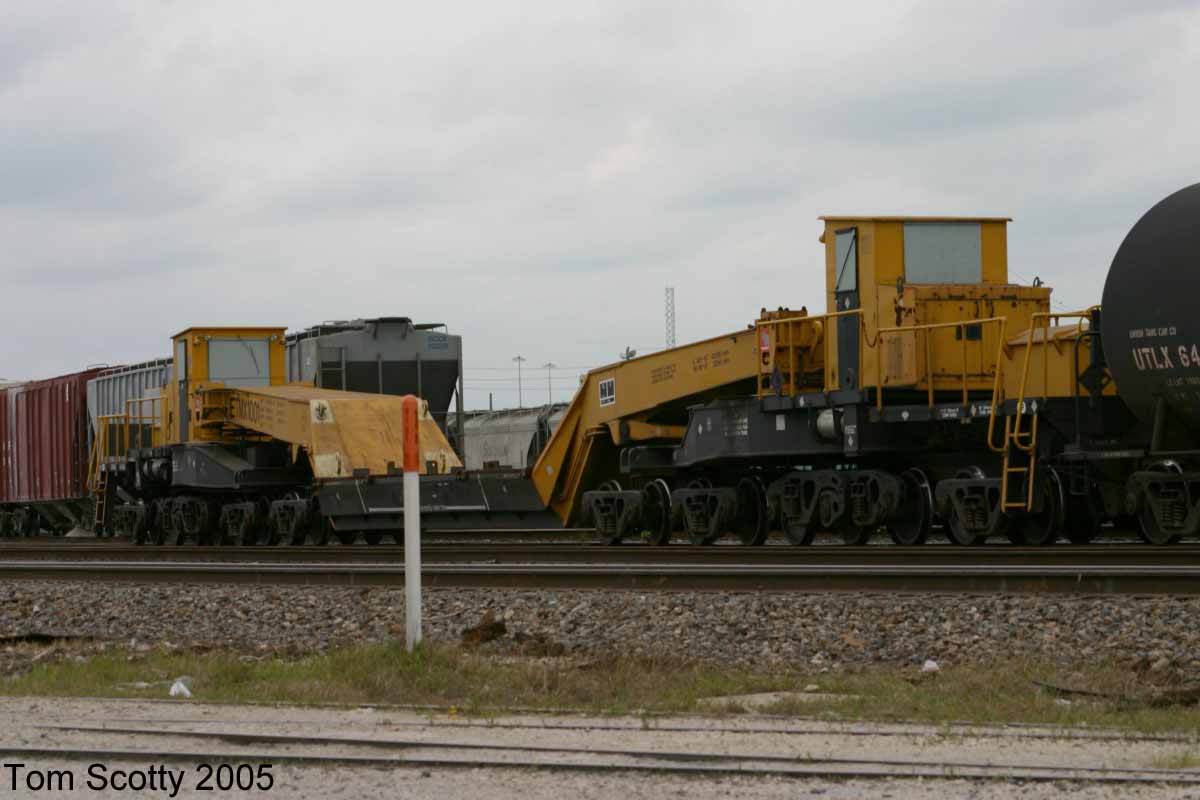

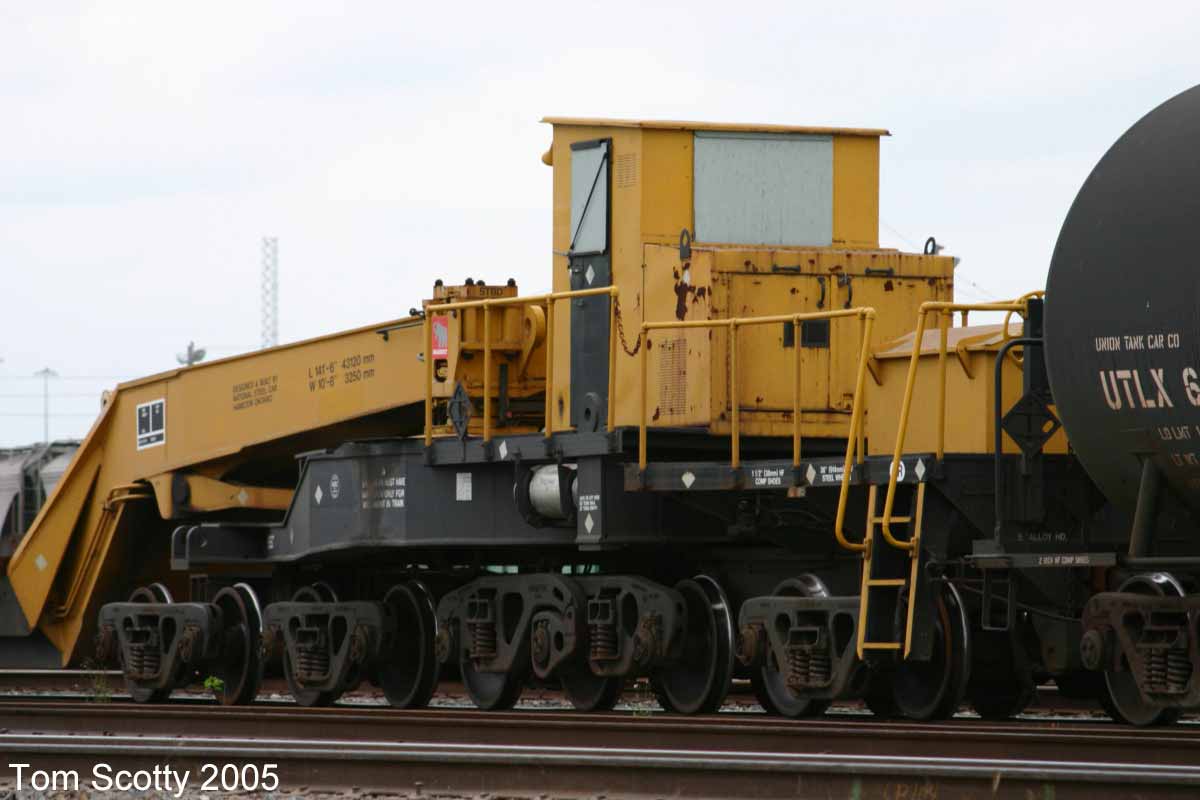

The following photos were taken in Hardy Yard in Houston on April 2, 2005.
They were taken by Tom Scotty, and are used with his permission.

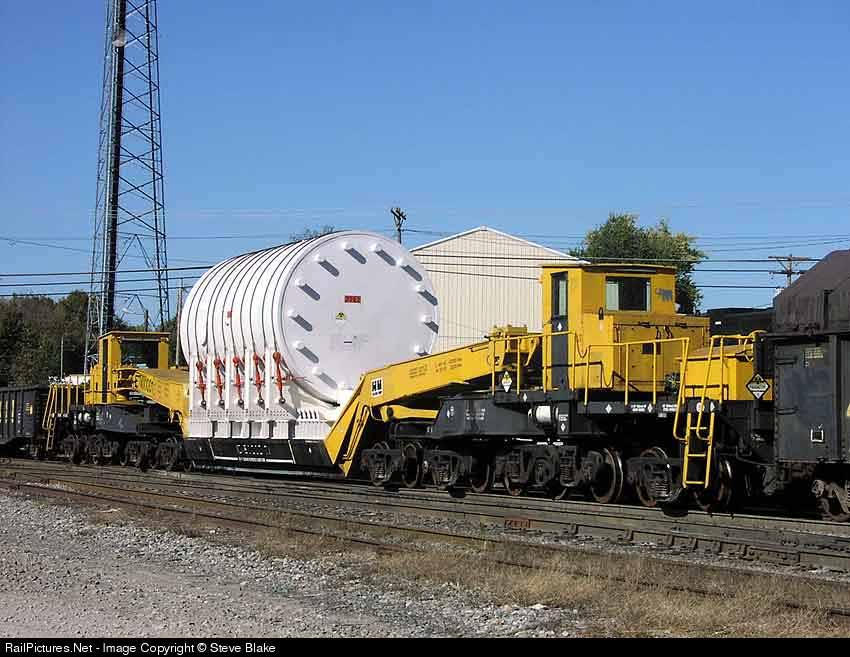

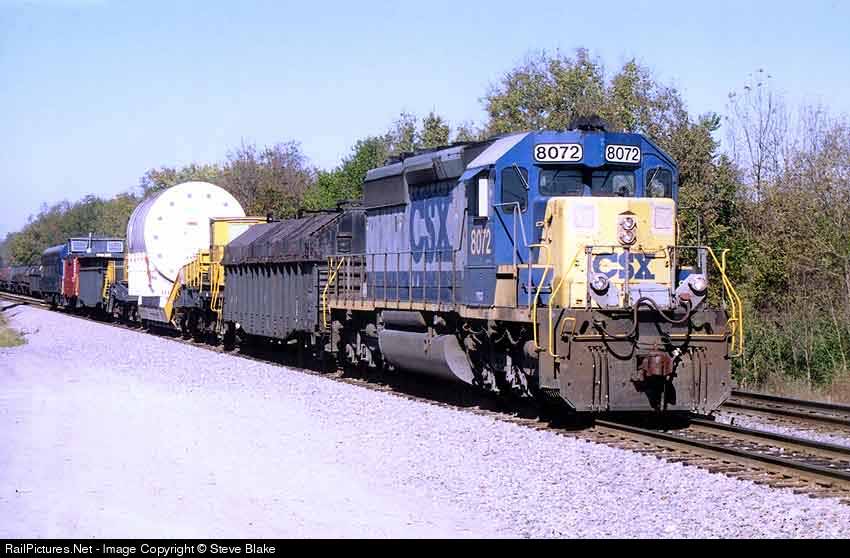

The following three photos were found on Railpictures.net. They were taken by Steve Blake.

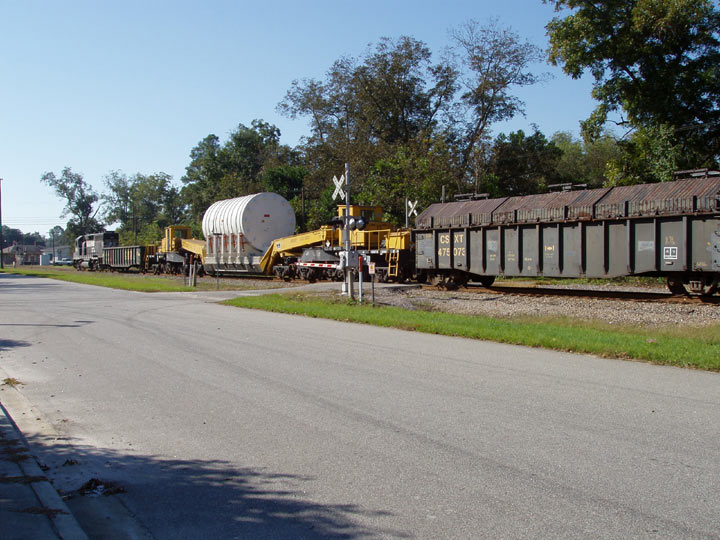

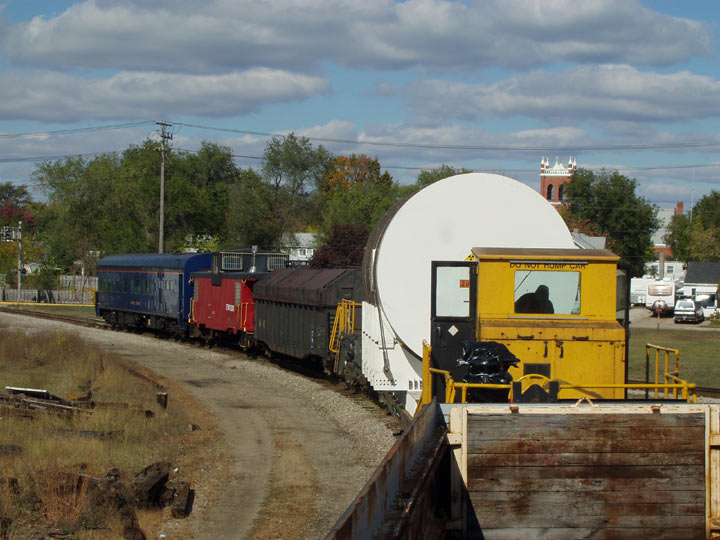

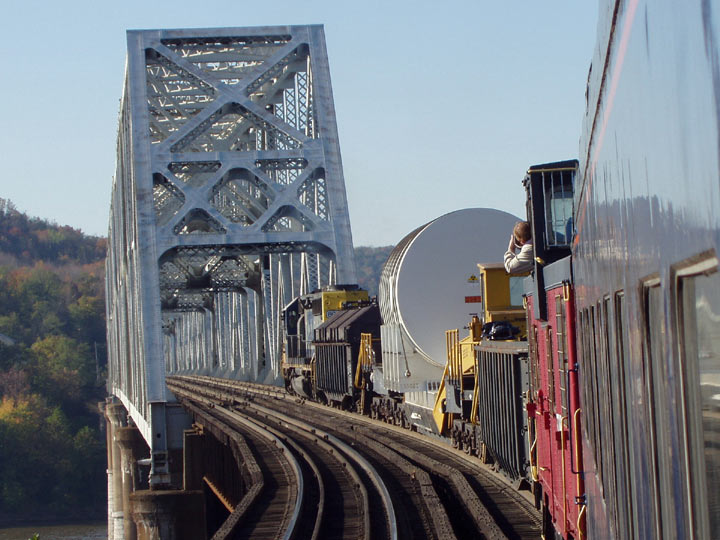

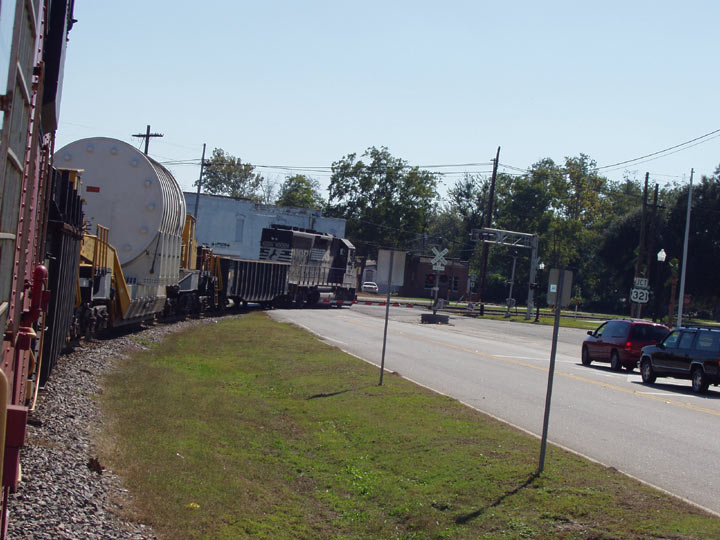

Mick Papp sent the following photos, they are used with his permission. Mick accompanied the encased reactor from Michigan to Barnwell, SC. The photos were taken during between October 18 and October 21, 2003. These photos are shot in Barnwell, SC, Fairfax, SC, Toledo, and going on the bridge in Cincinnati.

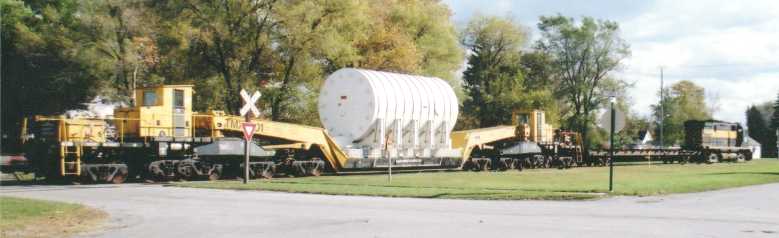

The following two photos were sent by Jim Milnor, and are used with his permission. There were taken on
October 15 2003 in Pinconning, Standish, and Sterling, Michigan on the Lake State Railway.

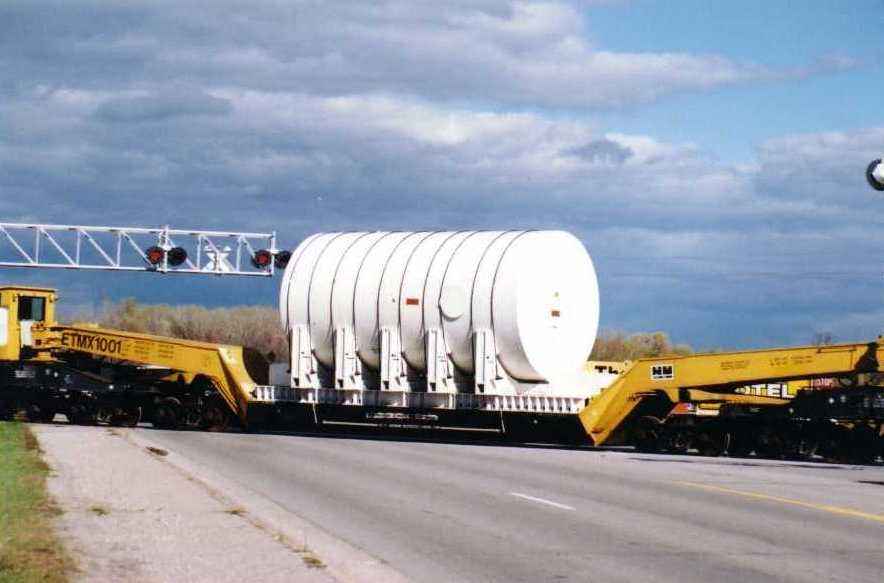

The following two photos were sent by Mick Papp, and are used with his permission.
"They show a 67 MWe reactor vessel from Big Rock Point removed last
month. The shipment weight is 305 Tons with a container length of 25 feet and 13 feet in diameter. The container is
made from 3" thick carbon steel with special properties with 4" thick top and bottom end plates and an
additional 4" thickness at the ‘belt’ line’ where the reactor fuel was once located."
It left from Gaylord, MI on Tuesday 10/14/03 and arrive at a low level waste facility in Barnwell, SC sometime towards the end of the month.

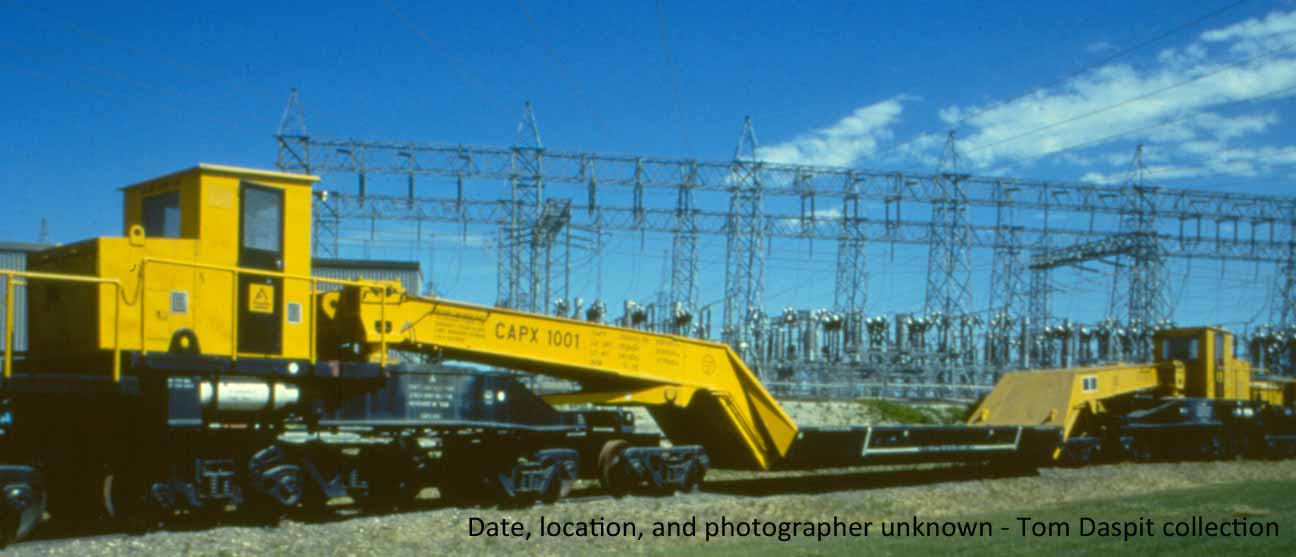

The following photo is from my collection.
The following three photos are from my collection.

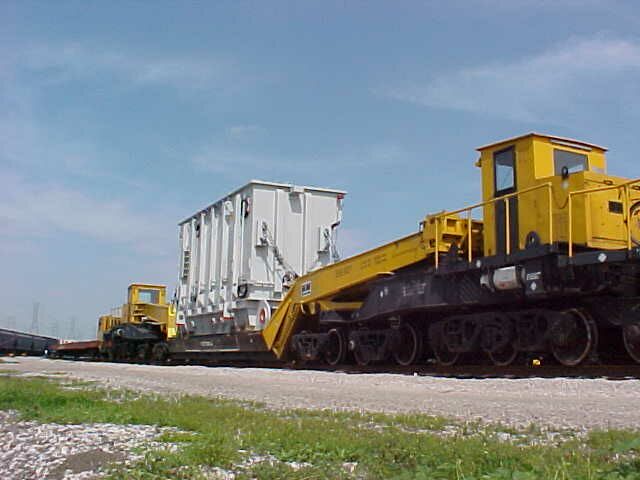

The following two photos were sent to me by Nestor Bernabe which shows the ETMX 1001 car with a
740,000 lbs transformer.

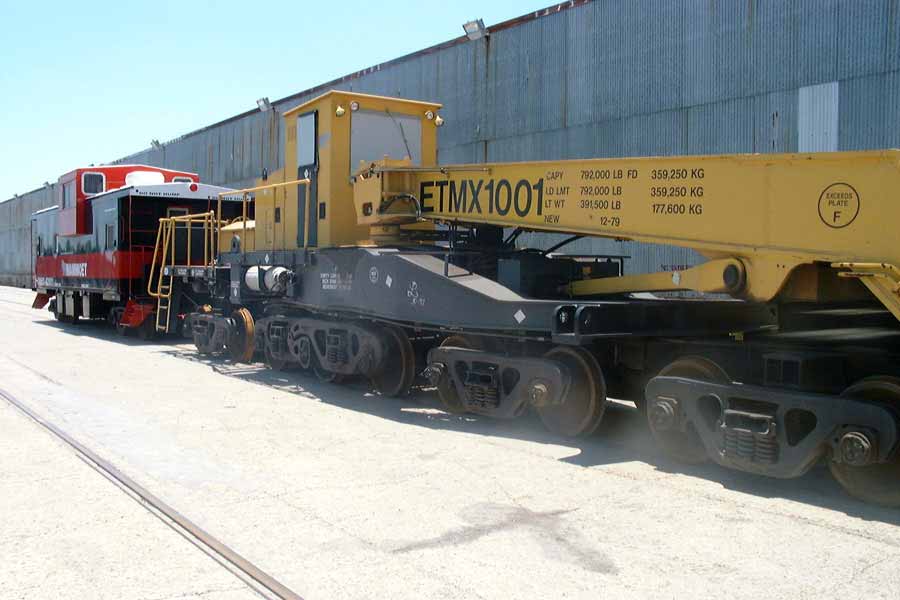

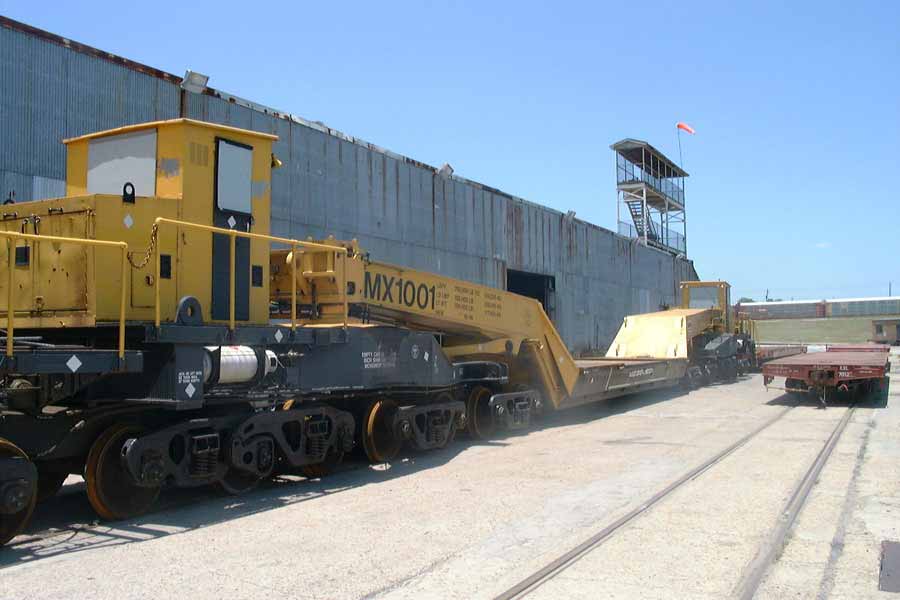

The following photos were taken at the Port of Houston by Donald Boyce. They are used with
Donald's permission.

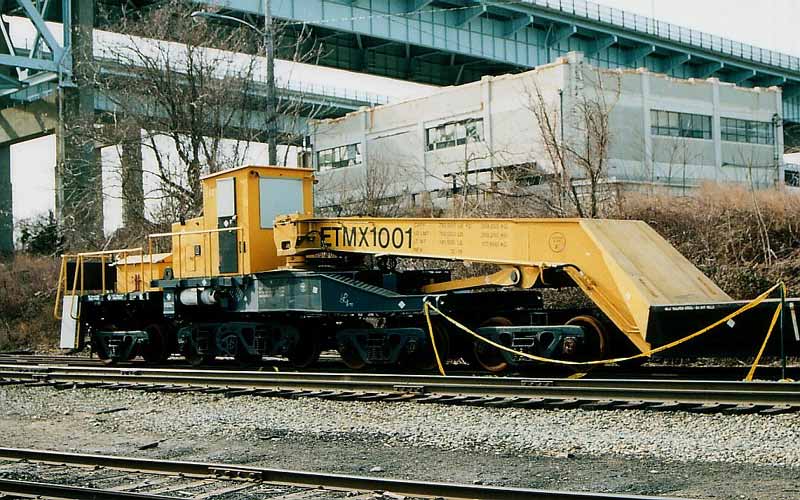

The following three photos were sent to my by Paul McGrane. They are used with his
permission. These were taken Feb. 18, 2002 at the New England Central RR yard in New London CT.
The following photo were taken by John Bartley at the Port of Albany, NY. This photo was
taken on 11-6-2001.
They are from the collection of Greg Ajamian. These photos are used here with the permission of
both John and Greg.

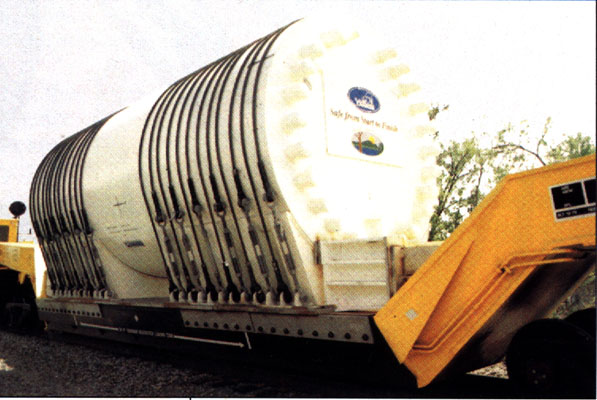

The following photo was found in the NS EMployee magazine. It only
shows the load of a decommissioned nuclear reactor that was being shipped.
The following photo was found on Paul Wilson's
Central Virginia Railfan page.
"NS 052, high and wide extra moves a Schnabel car carrying a nuclear reactor vessel at
Russell, the north end of the siding through Waynesboro, VA. NS C40-9 8834 on the point."
Based on futher research and looking at the end of the picture, this is not a
schnabel car, because a schnabel car would block the view of the end of the load.
This looks like the CAPX car.
Photos and articles in print:
Equipment Diagrams:
None
Related Patents:
None
Commercial Models:

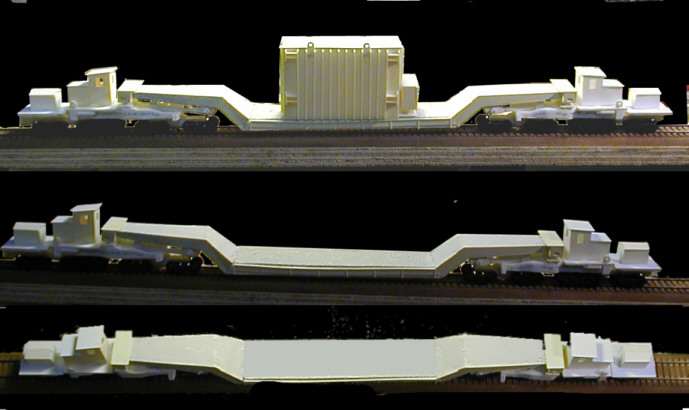

An HO scale model is available Concept Models. This is an unpainted resin model.
