SCEX 2
Description:
This ten axle depressed center flat car was originally owned by Southern California Edison. It built in June of 1965.
Specifications:
|
Capacity |
500,000 lbs. |
|
Light Weight |
222,000 |
|
Load Limit |
|
|
Number of axles |
10 |
|
Deck Length |
25' |
|
Car Length |
81' |
Photos

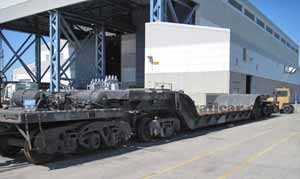

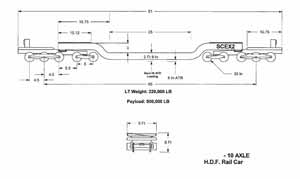

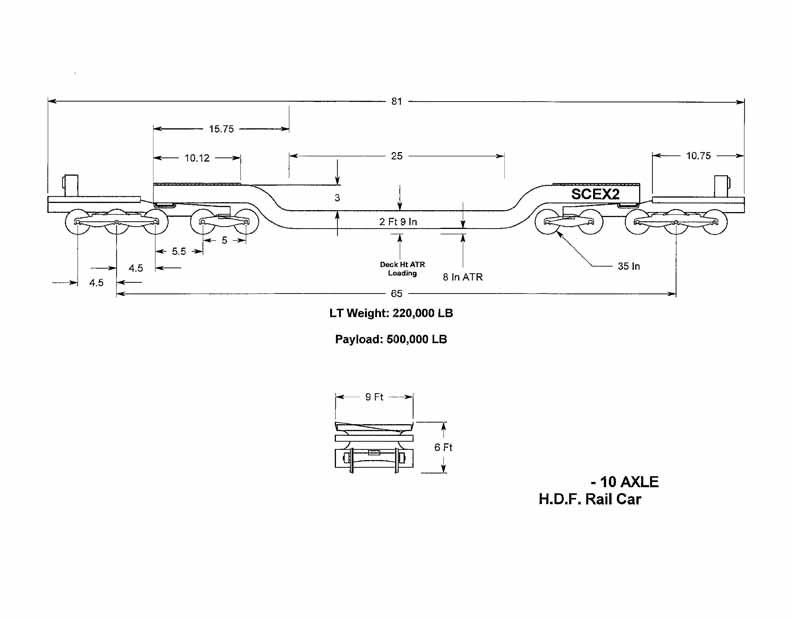

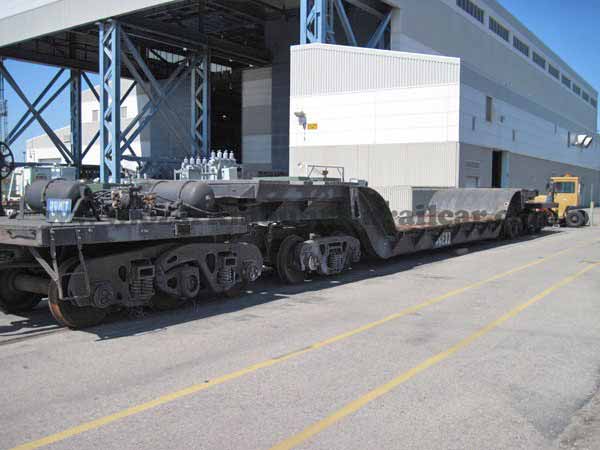

The following photo, and the car drawing below were found on the Ozark Mountain Railcar where they had the car listed for sale.

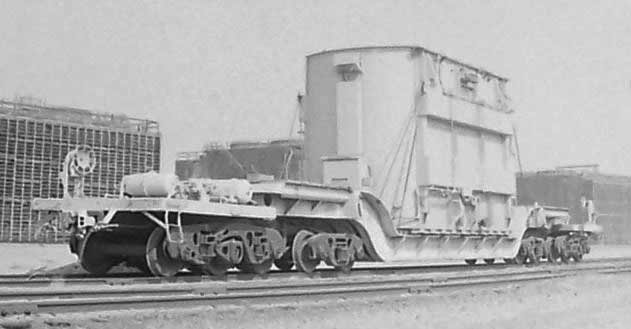

I do not recall the source of the following photo..
Photos and articles in print:
None
Equipment Diagrams:
Related Patents:
patents are a good place to find diagrams.
None
Commercial Models:
None
