EON Energie Type Uaai 687.9

Description:

This 687.9 axle schnabel car is owned by EON Energie. It was previously built for DB by MAN in 1961. It is base in Pulheim (west of Cologne). This car is numbered 84 80 996 0 003-5 P

Specification:

Photos:

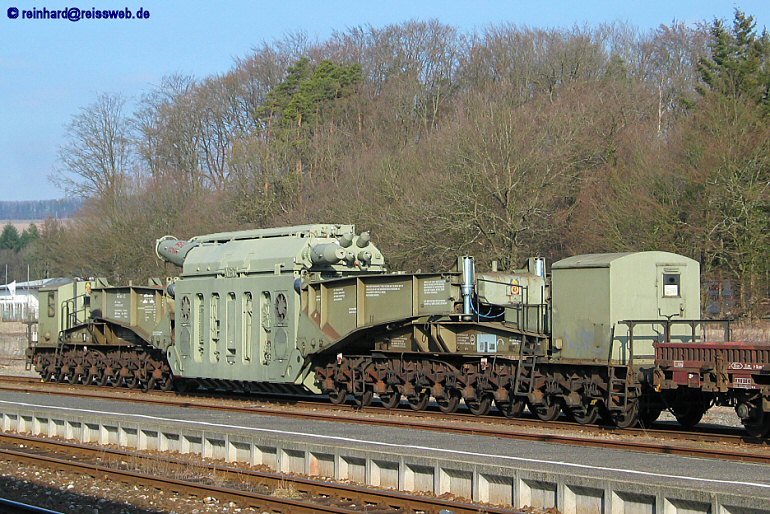

Reinhard Reiss took the following photos, they are used here with his permission. Reinhard took them in Lauchringen on February 20, 2004. Reinhard posted the first photo to the European Railway Picture Gallery, and then sent in the second two photos. Reinhard has a great web site.

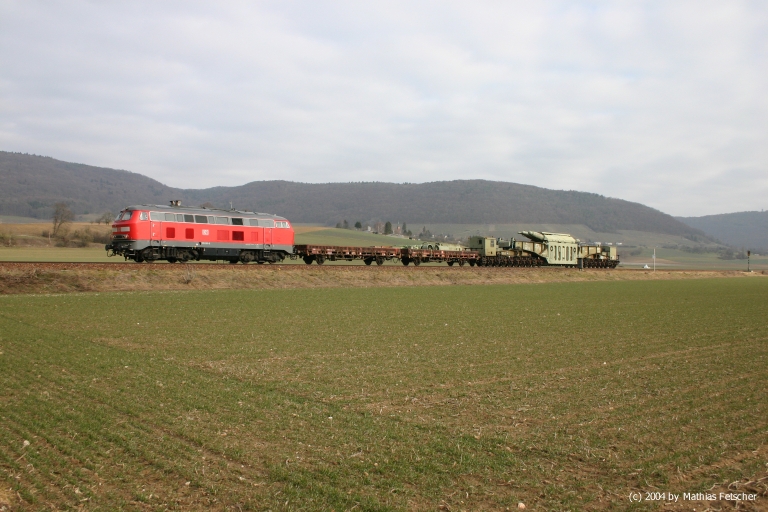

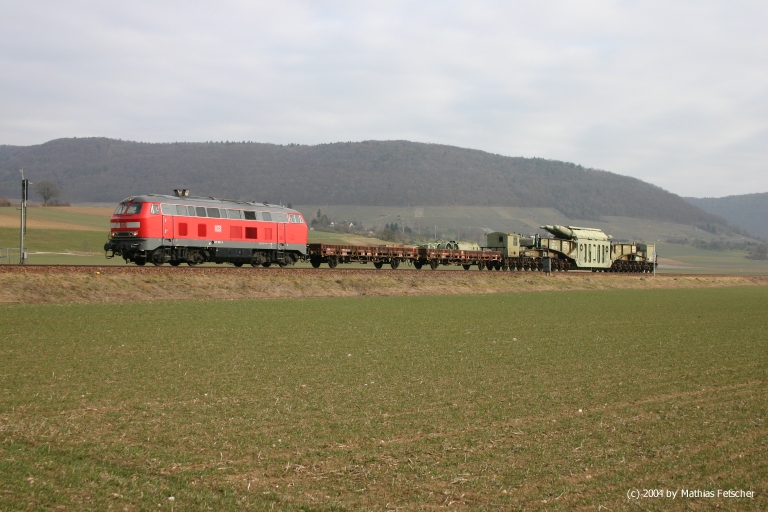

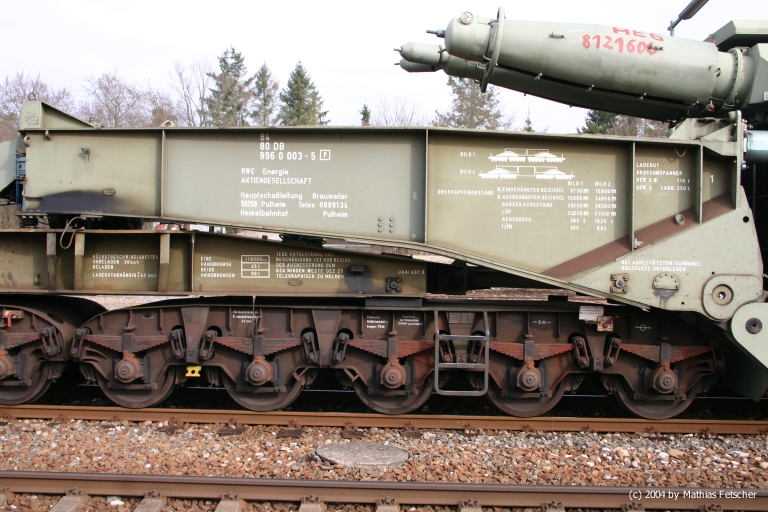

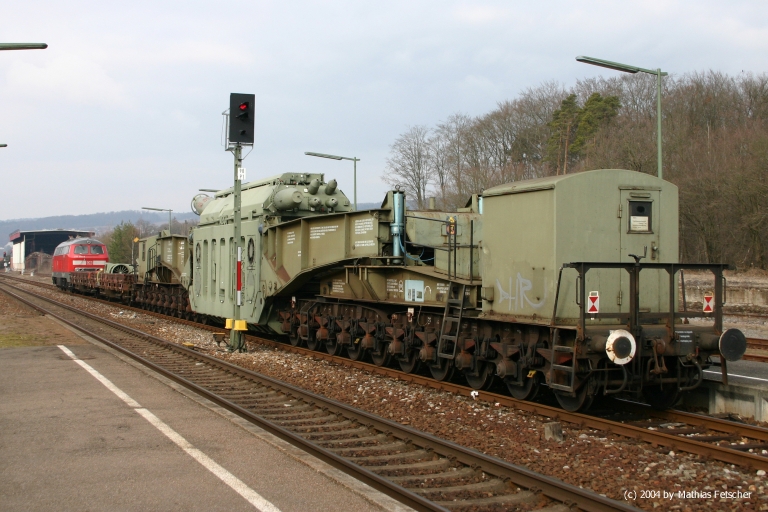

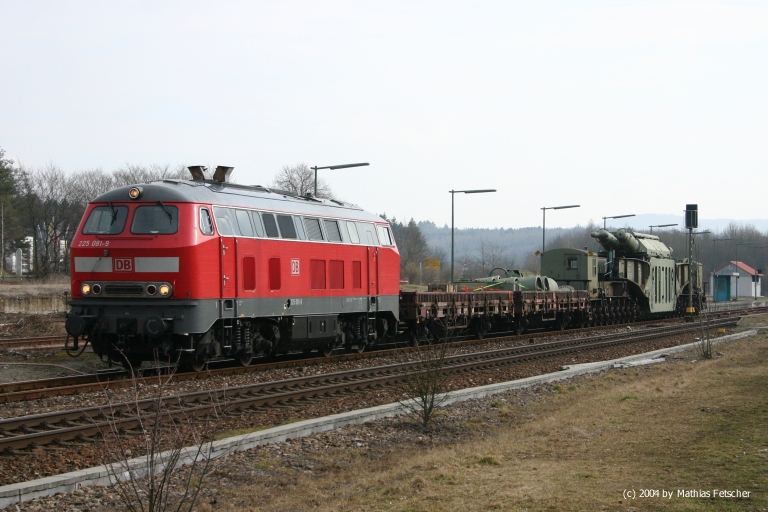

The following photos taken by Mathias Fetscher. Mathias originally posted four photos of this shipment on found on LOK Report website. The LOK Report is a non-commercial, European railways magazine in German language, published monthly by LOK Report e.V.

They are used with Mathias' permission. Mathias also provided the specifications about the car and where is it currently based.

provided the following information about the shipment

The train transporting the transformer traveled on 15 February 2004 from Villingen-Schwenningen/Southern Germany to Lauchringen/Southern Germany where it has rested to 20 February 2004 until the flexible rail connection to the receiver was fixed. The transformer was loaded to the car in Bad Essen-Wehrendorf (east of Osnabrueck/Northern Germany), then the car was taken a few kilometres to Bohmte by VLO (Verkehrsgesellschaft Landkreis Osnabruek) and then handed over to the DB for shipping to the receiver in Tiengen/Southern Germany.

The car transporting the transformer was the Uaai 687.9 (mislettered on car in capital letters UAAI) with the Number 84 80 996 0 003-5 P built in 1961 by MAN for the DB and belonging now to RWE Energie AG. The home depot for the car is Pulheim (west of Cologne).


Singen (Hohentwiel)/Germany. The mountain with the castle in the background is the Hohentwiel.
Bietingen/Germany with the train going straight to the border to Switzerland.
Schaffhausen/Switzerland.
Guntmadingen/Switzerland.
Griessen (Baden) back in Germany.
Lauchringen/Germany were the train terminated for the day.

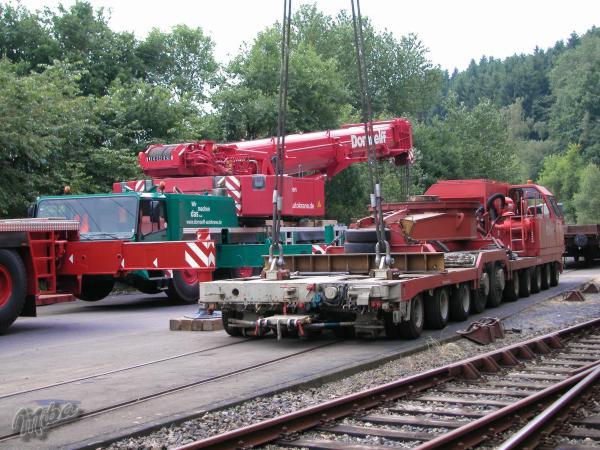

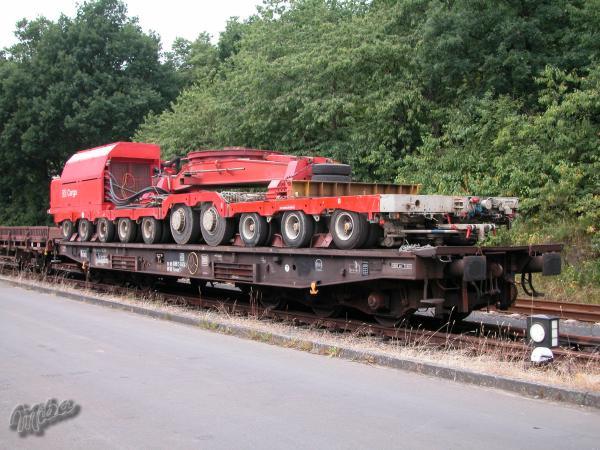

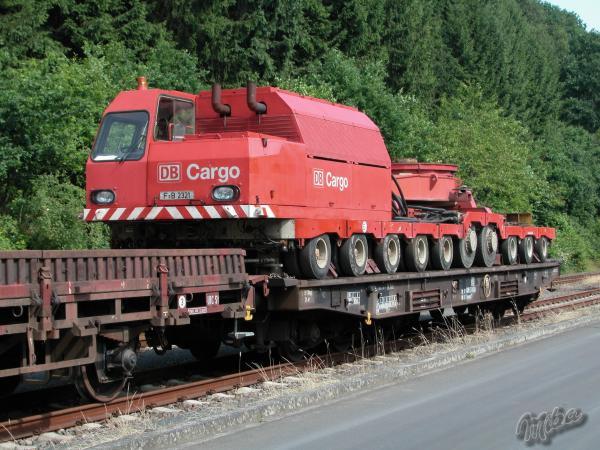

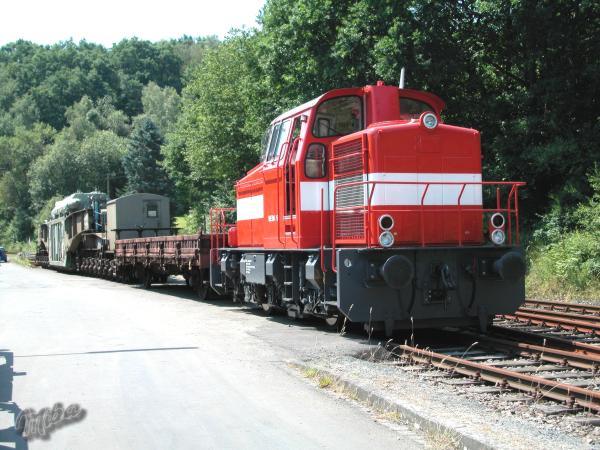

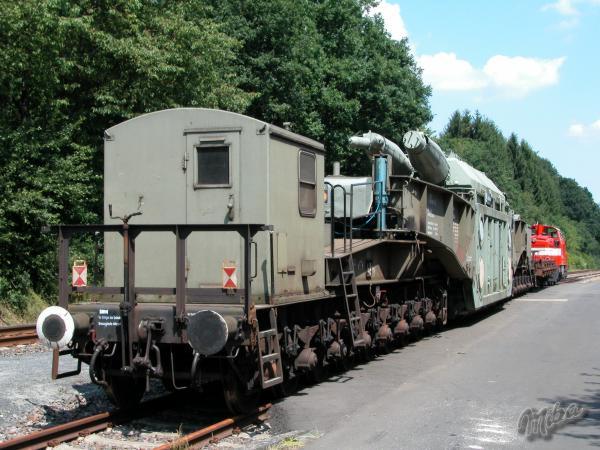

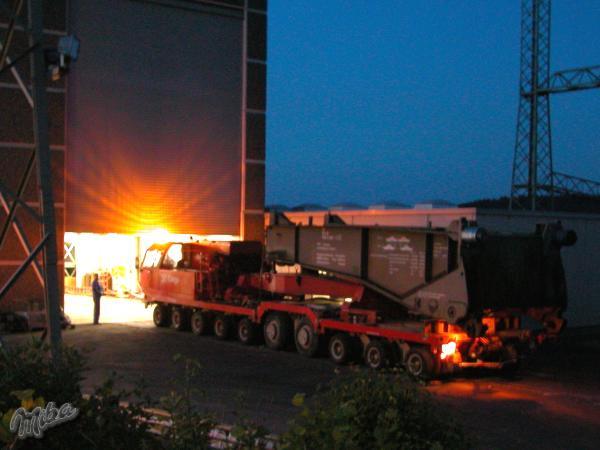

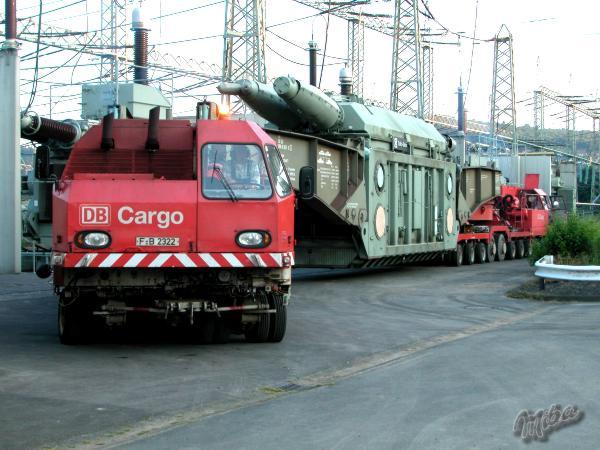

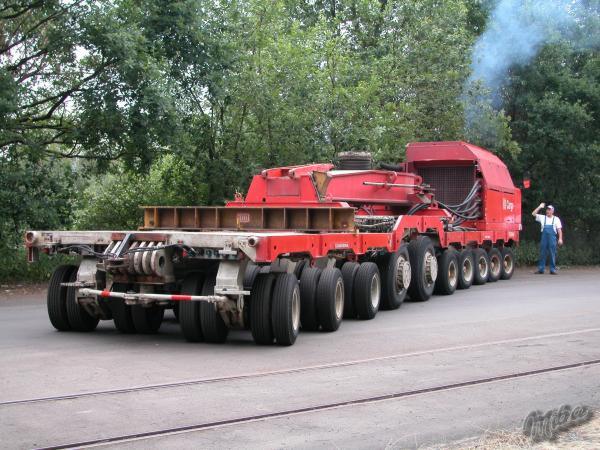

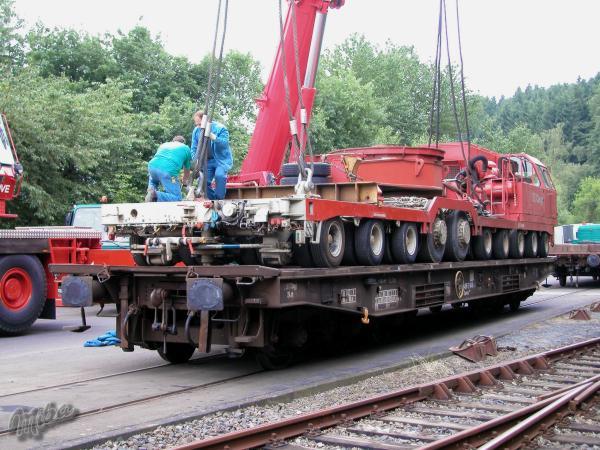

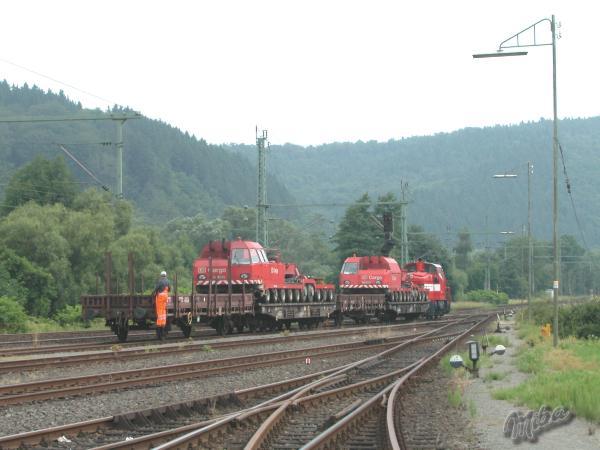

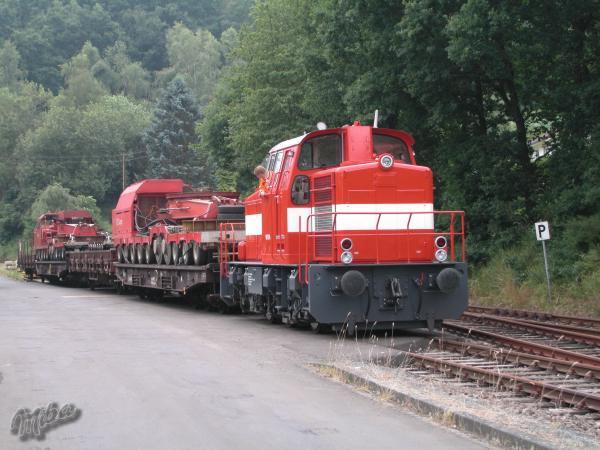

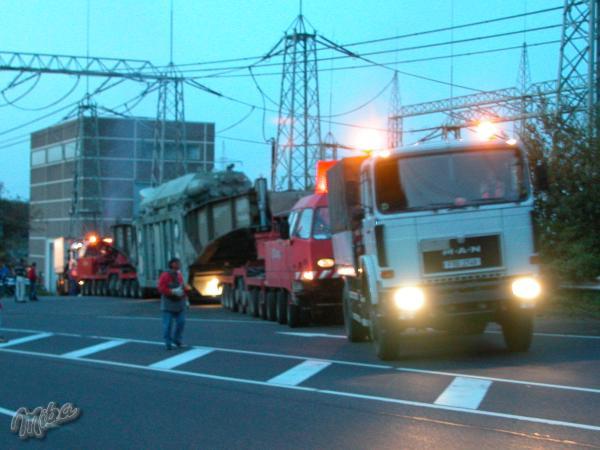

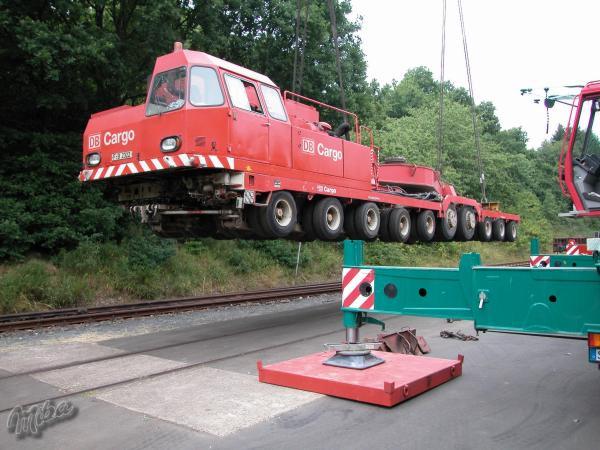

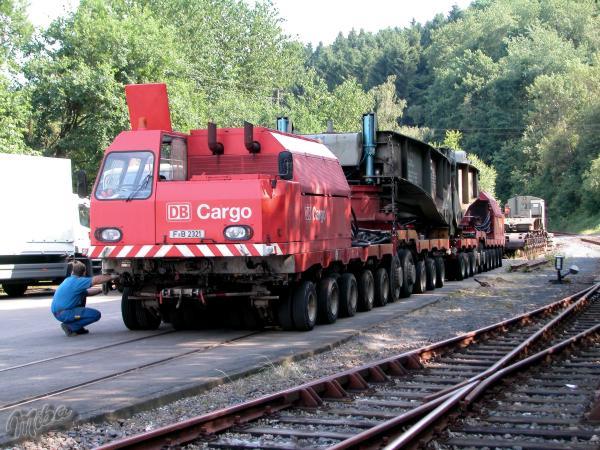

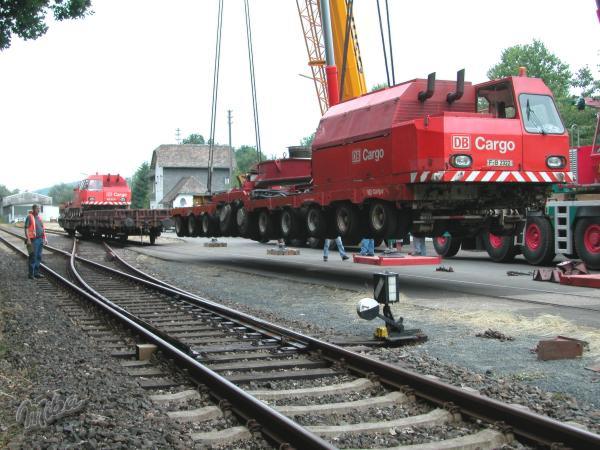

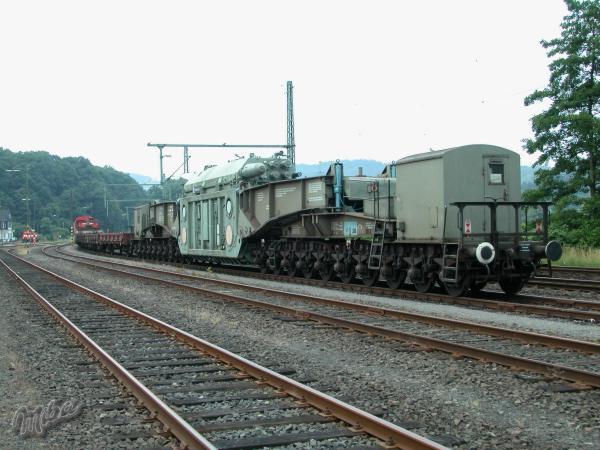

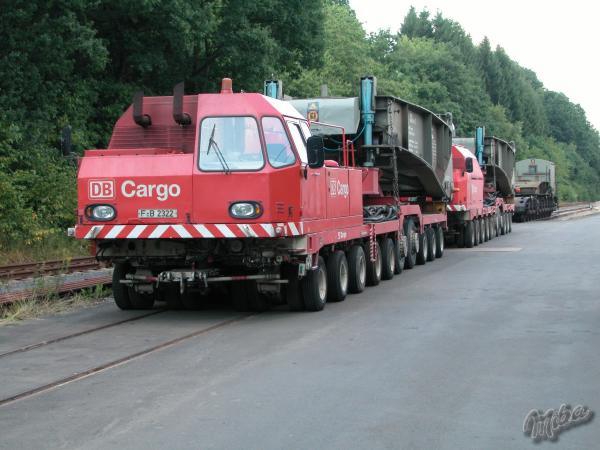

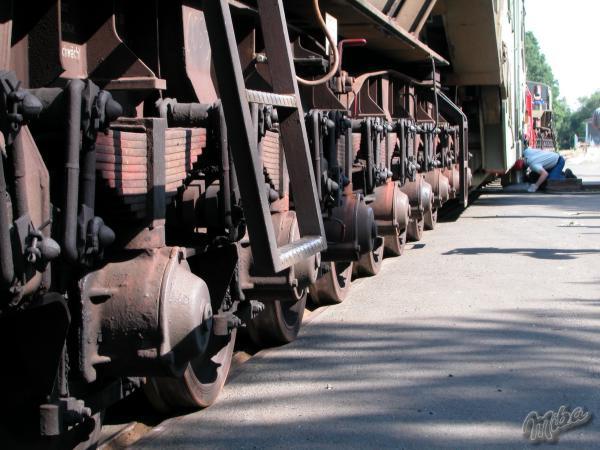

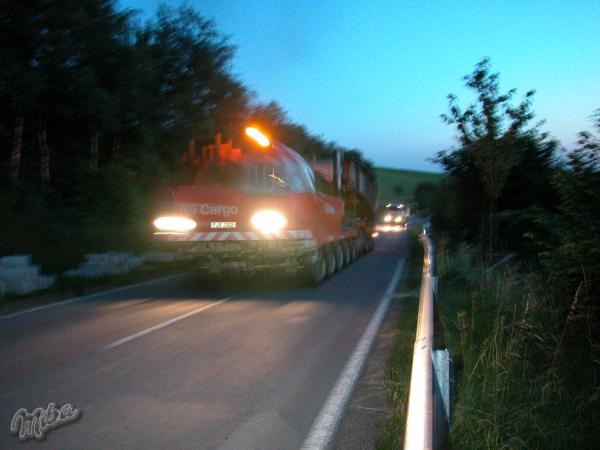

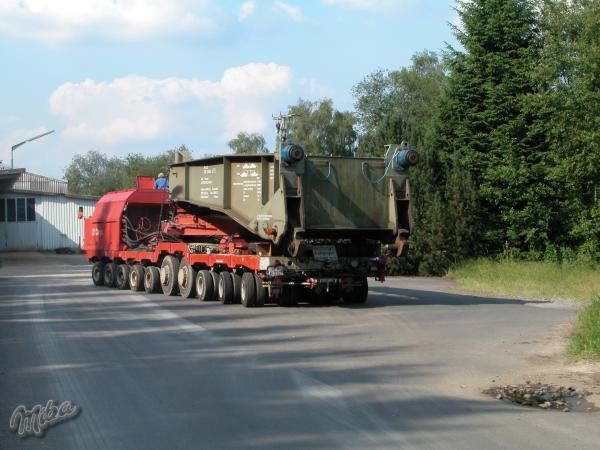

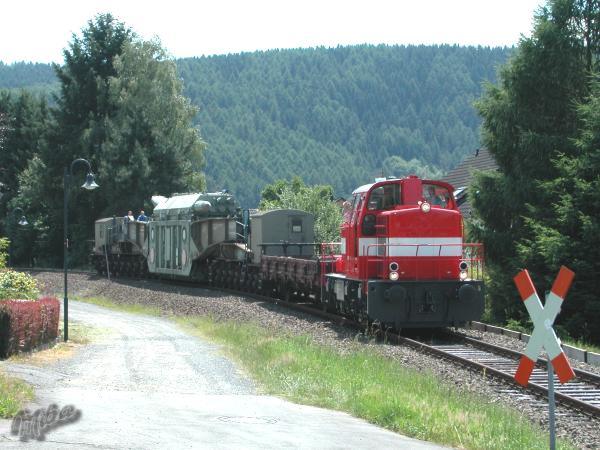

The following photos were shot by Michael Baier and found on his webpage, and are used with his permission. These are great shots that show both the rail and road use of the schnabel car. Also the road version traveling on flat cars to where they are needed.

Herman Jahn sent the following photos; they are used with Herman's permission. Herman has a very interesting web site on freight car boogies. It is in German.

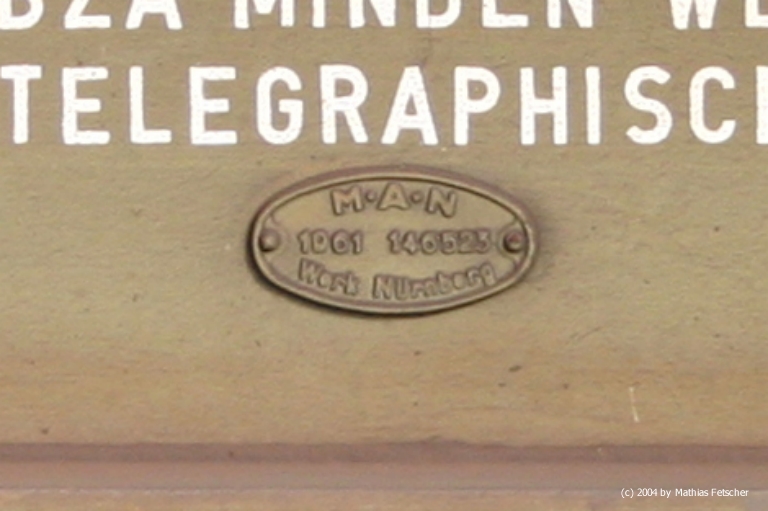

"Met this car in 26. March 1997 here in Hamelin, when the car was visiting the Kaminski repair and maintenance shop. The car was built by MAN (Maschinenfabkrik Augsburg Nürnberg) in 1961. The fabrications numbers of the car was from 146519 to 145525 (each part of the car has got an own number (each bogie, an each schnabel-part)."

Equipment Diagrams:

None

Related Patents:

patents are a good place to find diagrams.

None

Commercial Models:

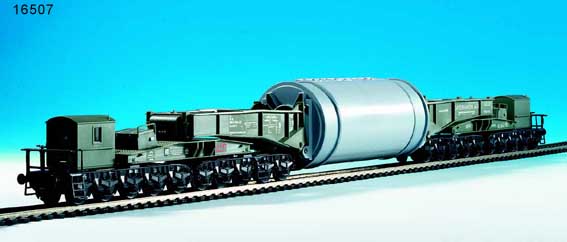

Over the years, Kibri has made four version of this wagon, both with and without a transformer, and the road version with transformer and cylinder load.
