Qiqihar Type D20 280 Ton Schnabel

Description:

This 280 ton schnabel car was built by the Qiqihar Railway Rolling Stock (Group) Co., Ltd.

Specification:

Load Limit including side beams

280 Tons

Light Weight

138 Tons

Axle Load

21 Tons

Load Per Meter of Track

10.1 Tons/meter

Number of axles

20

Empty Car Length

102'

Maximum Loaded Length



Maximum Vertical Load Shifting ability



Maximum Laterial Load Shifting ability



Minimun Curve Radius - Empty

585'

Width



Height





Photos:

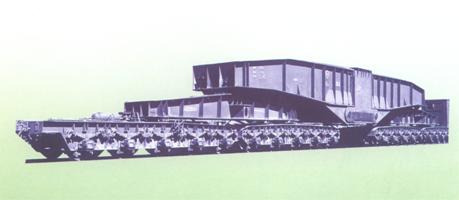

The above photo was found on the Qiqihar Railway Rolling Stock web page.



The above photo was found on the China-power Large Sized Equipment Transportation Corp. web page.

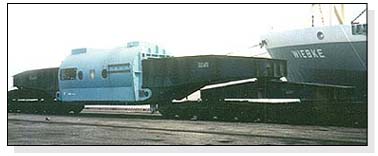

Transporting the generator stator of a 330 MW generator unit for Shaanxi Pucheng Power Plant from Tianjin Xingang Port to the construction site by the railway Model D20 chela wagon weighing 245T together with the main transformer in the special railway wagon.
