Qiqihar Type D35 350 Ton Schnabel

Description:

This 380 ton schnabel car was built by the Qiqihar Railway Rolling Stock (Group) Co., Ltd.

Specification:

Load Limit including side beams	350 Tons
Light Weight	290 Tons
Axle Load	20 Tons
Load Per Meter of Track	10.3 Tons/meter
Number of axles	32
Empty Car Length
Maximum Loaded Length
Maximum Vertical Load Shifting ability	400 mm
Maximum Laterial Load Shifting ability	500 mm
Minimun Curve Radius - Empty	150 meters
Width
Height

Photos:

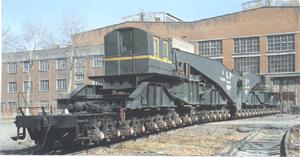

The above photo was found on the Qiqihar Railway Rolling Stock web page.

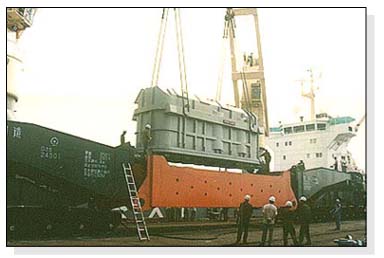

The above photo was found on the China-power Large Sized Equipment Transportation Corp. web page.

Transporting the main transformer of a 330 MW generator unit for Shaanxi Pucheng Power Plant from Tianjin Xingang Port to the construction site by the railway Model D35 chela wagon weighing 250T in a special railway wagon.

Photos and articles in print:

None

Equipment Diagrams:

None
