Qiqihar Type D38 380 Ton Schnabel

Description:

This 380 ton schnabel car was built by the Qiqihar Railway Rolling Stock (Group) Co., Ltd.

Specification:

Load Limit including side beams	380 Tons
Light Weight	226 Tons
Axle Load	18.9 Tons
Load Per Meter of Track	9.4 Tons/meter
Number of axles	20
Empty Car Length
Maximum Loaded Length
Maximum Vertical Load Shifting ability	+500/-150 mm
Maximum Laterial Load Shifting ability	500 mm
Minimun Curve Radius - Empty	150 meters
Width
Height

Photos:

The above photos were sent to me by Howard Canfield. They are used with Howard's permission

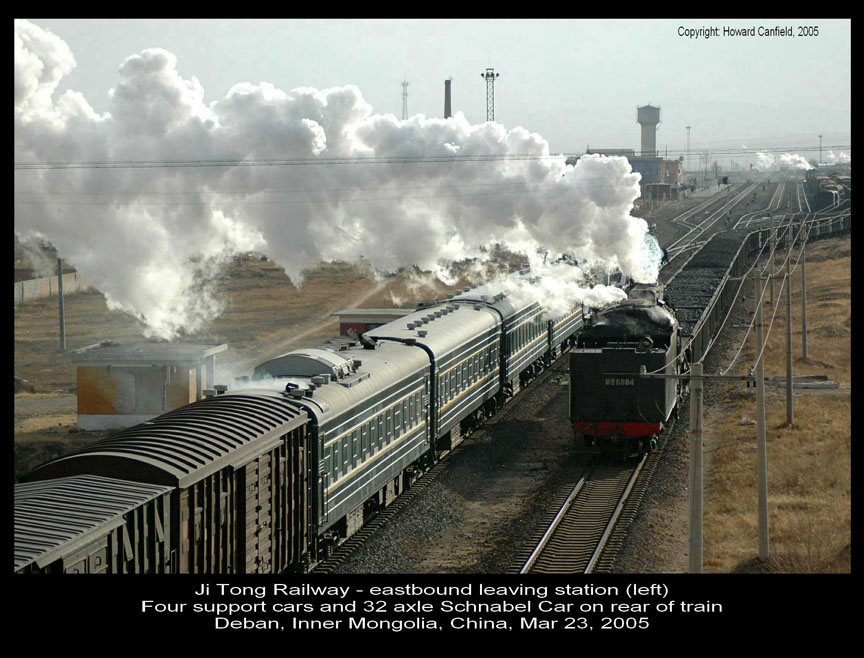

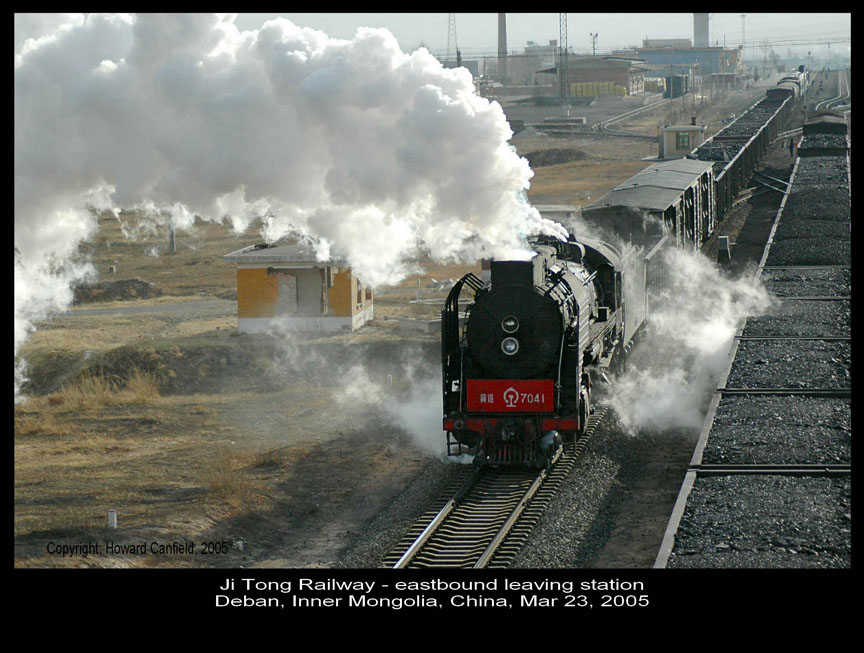

"I was in China in March 2005 with the Trains Unlimited Tour and on March 23 we photographed this train which had a 32 axle Schnabel Car (no load) on the rear. It was attached to the rear of support cars for the crew. Seeing this car pulled by steam generated a lot of smiles by tour members. We had our luggage in the bus after checking out of the hotel at Reshui in the morning and we moving to Lindong for the next few days. Most of the day was spent following and photographing the eastbound steam powered doubleheader we paid for over Jing Peng Pass. That put us in Deban where we caught this train leaving town. It must have been following our steam doubleheader over the pass. To bad we did not get this train pulled by our doubleheader. We tried following this train with our bus to Lindong but we lost most of the light before we caught up with it. The two lane road between Deban and Lindong was not very good which made it difficult to catch up. When we did catch up this train was having a lot of problems maintaining speed with only one engine and the steeper grades as it worked its way east. Where the road and railroad separated they were barely moving and that was the last we saw of this train. The crew should have radioed for a helper."

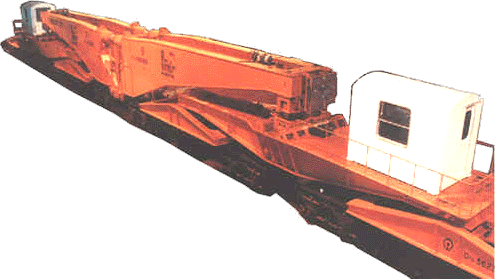

The above photos were found on the Qiqihar Railway Rolling Stock web page.

Photos and articles in print:

None

Equipment Diagrams:

None

Related Patents:

None

Commercial Models:

None
