Capacity |
600,000 lbs. |
|
Light Weight |
|
|
Load Limit |
|
|
Number of axles |
20 |
|
Empty Car Length |
|
|
Maximum Loaded Length |
|
|
Maximum Vertical Load Shifting ability |
500mm |
|
Maximum Horizontal Load Shifting ability (either side of car center line) |
500mm |
The following information and photo are from the Arbegui website.
The 20 axle wagons have two different compositions:
a).- wagon with intermediate beam.
b).- wagon for self-supported load.
The load limit with intermediate beam in 250 tons.
The load limit for self-supported loads in 300 tons.
In both cases it will be necessary to use shifts of 500 mm on each side and elevations of 500 mm if the load exceeds the normal gauge established by Renfe.

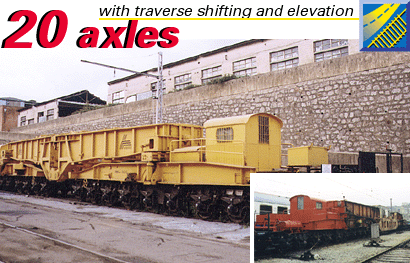

In the picture;
a.- Idle running 20 axle car.
b.- Transportation of a 125 T. transformer.
